13th Gen Pfsense/OPNsense 6xLan Firewall Router Intel i7 1355U i5 1335U i3 1315U U300 6xI226V 2.5Gb Mini PC 2*NVMe 2*SATA Firewall Appliance USB3.2 3xDisplay
13th Gen Pfsense/OPNsense 6xLan Firewall Router Intel i7 1355U i5 1335U i3 1315U U300 6xI226V 2.5Gb Mini PC 2*NVMe 2*SATA Firewall Appliance USB3.2 3xDisplay
Impossible de charger la disponibilité du service de retrait
|
Processors |
Cores & Threads |
L3 Cache |
Max Turbo Frequency |
TDP |
Graphics |
| Intel U300 | 5 cores, 6 threads | 8M | 4.40 GHz | 15W | Intel UHD Graphics max 1.10GHz |
| Core i3-1315U | 6 cores, 8 threads | 10M | 4.50 GHz | 15W | Intel UHD Graphics max 1.25GHz |
| Core i5-1335U | 10 cores, 12 threads | 12M | 4.60 GHz | 15W | Intel Iris Xe Graphics max 1.25GHz |
| Core i7-1355U | 10 cores, 12 threads | 12M | 5.00 GHz | 15W | Intel Iris Xe Graphics max 1.30GHz |
Product Highlight

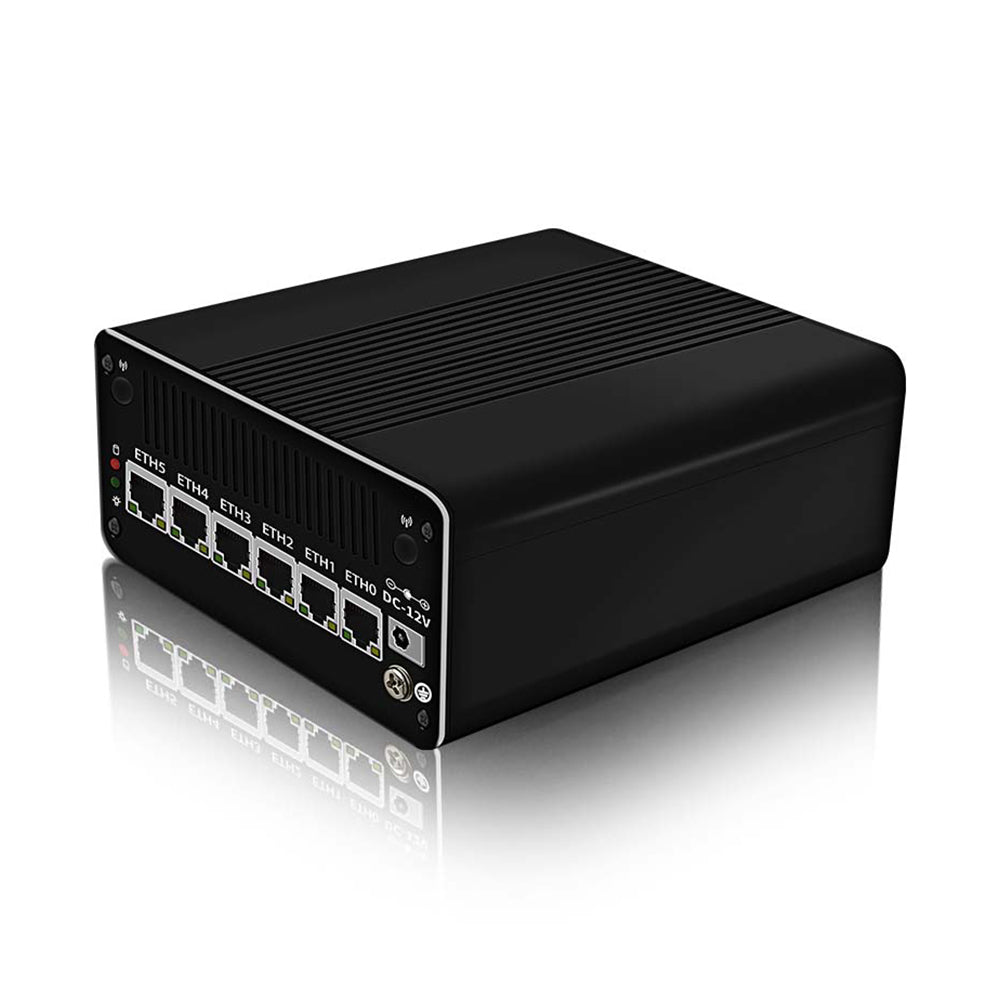

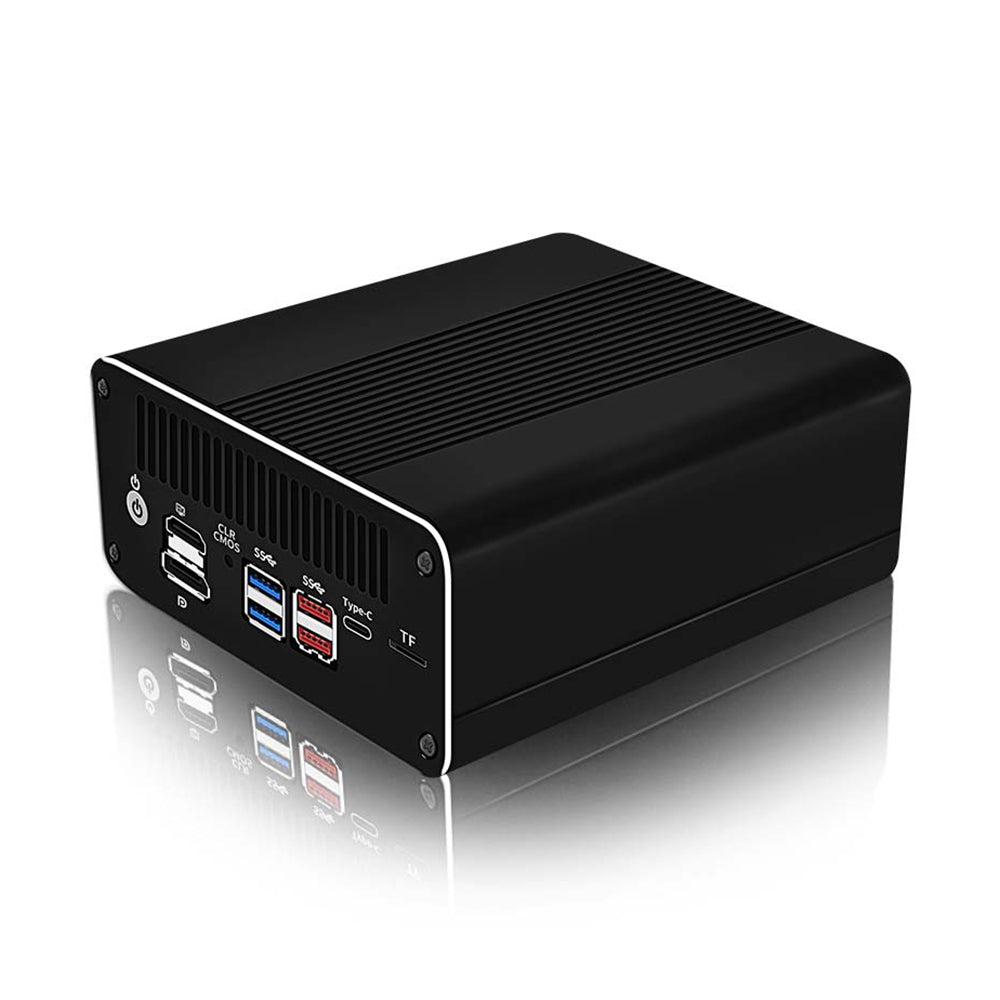

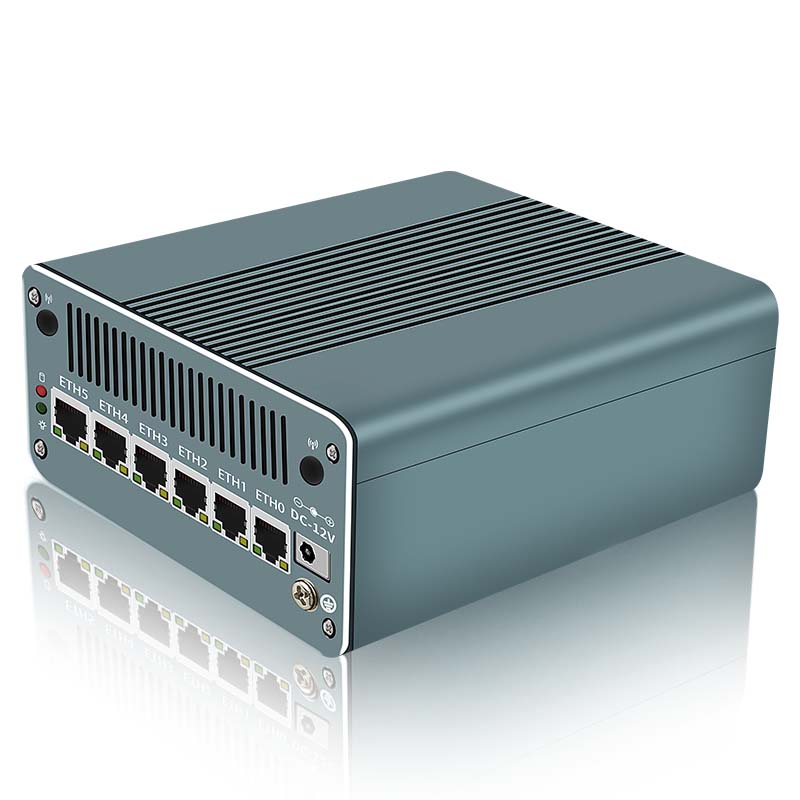

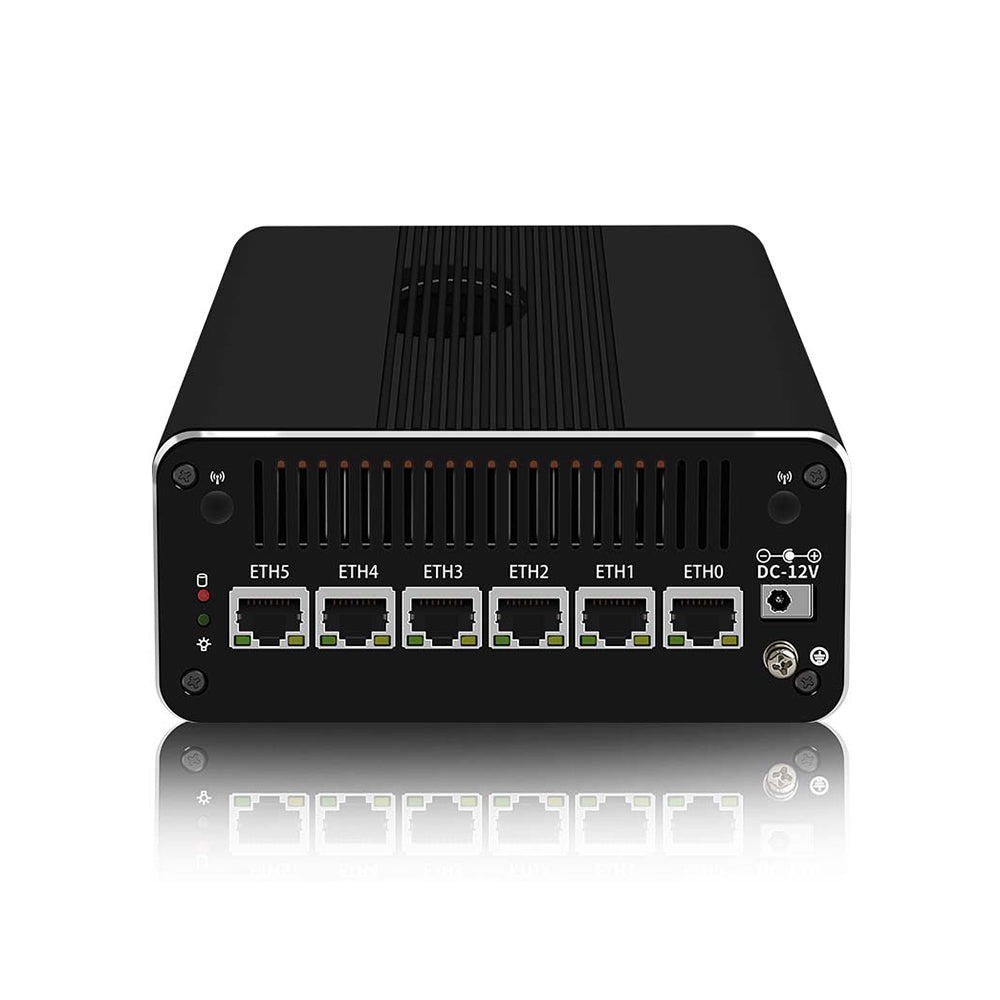

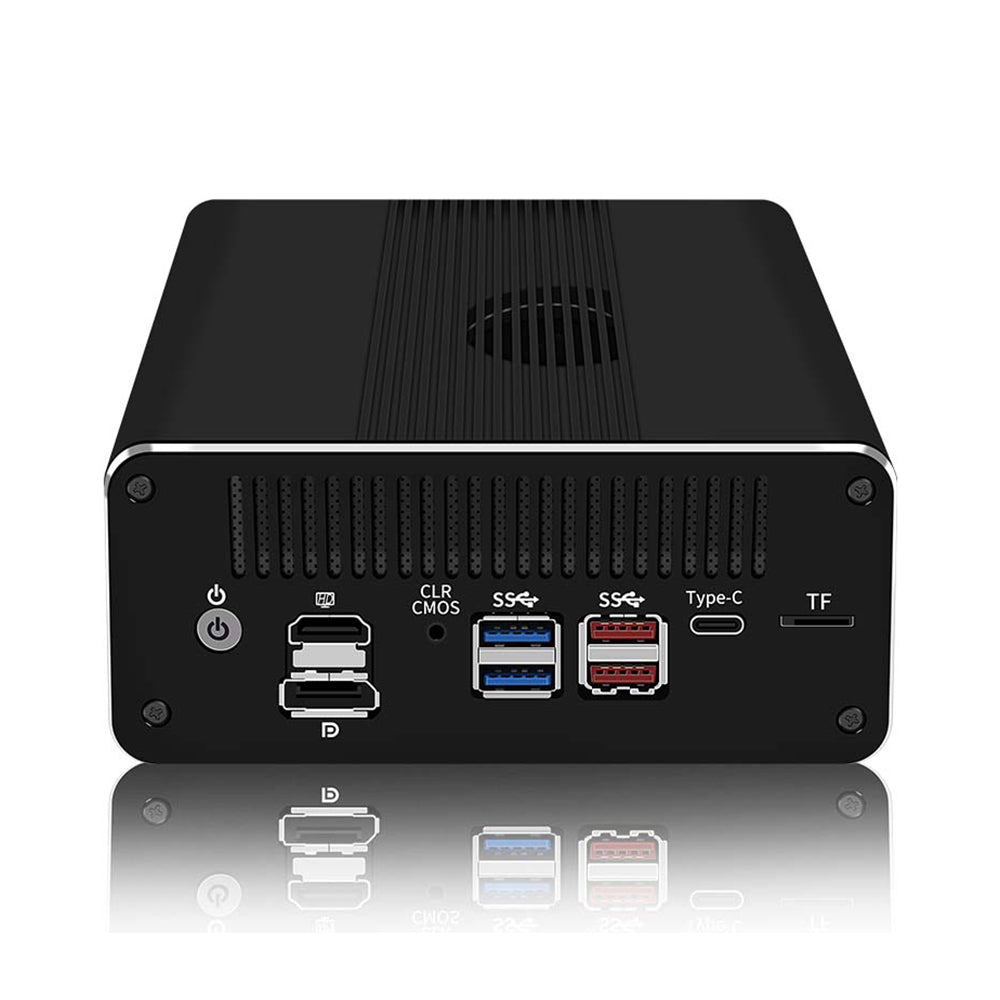

-6xIntel i226-V 2.5G UDE filter pure RJ45 LANs, 2xUSB3.2 Gen2(10Gbps), 2xUSB3.0, 1xType-C, 1xTF card slot.
-2xDDR4 SODIMM non-ecc ram slot, max 64GB 3200MHz.
-Support triple storage: 1xM.2 2280 PCIE 3.0x4 SSD+1xM.2 2280 PCIE3.0x1 SSD(use WIFI adapter board)+2x2.5''SATA3.0 SSD/HDD(non standard - 12pin).
-1xM.2 2232 slot, support WiFi connection, also support transfer to 1xM.2 NVMe/PCIe3.0x1 2280 SSD with PCB adapter board.
-TF card slot support storage and system disk boot.
-Support three display: 1xHDMI2.1, 1xDP1.4a, 1xType-C, 3x4K@60Hz UHD video display.
-Support wide voltage 12-19V input.
-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
-Low consumption TDP 15W and can be mounted back of monitor by VESA bracket(optional).
Package List
1xMini PC
1xPower Adapter
1xPower Cord ( we ship EU/US/UK/AU power plug base on buyer's address )
1xM.2 2232 to 2280 PCB adapter board
1xScrews Bag
TIPS: 2xSATA Cable non standard(if you need it please leave a message)
If you have any questions on MOGINSOK Firewall Appliance
Tips for using the Pfsense Firewall Appliance : default IP address is : 192.168.10.1（pfsense plus 23.0X version)
User Name for the Firewall Appliance default is : admin
Password for the Firewall Appliance default is : pfsense
We will update the bios from time to time, if you need it feel freely to ask for us.
